FLEX-DC

Finding Inspiration in Every Turn

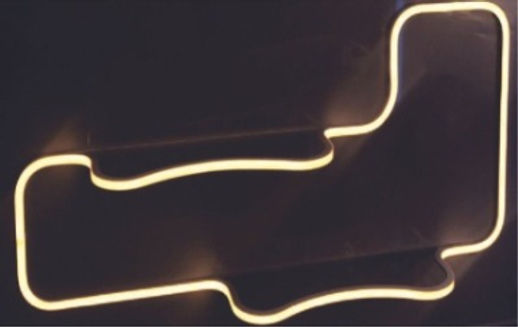

DUAL AND SINGLE AXIS BENDABLE LED Strip for dry, damp and wet location environments.

Available in Various Sizes to adapt to various applications.

Smooth matte finish for dust resistance.

Static White and Tunable White can be cut to any length (up to the max strip length - see data sheet).

Factory cutting included at no charge or accessories provided for field modifications.

For 120v and 230v AC versions please visit the FLEX-AC Page.

INSTALLATION INSTRUCTIONS                              DWG FILES                            IES FILES

FLEX1

flex1 dims.jpg

STATIC WHITE

Standard CCT's 1800 / 2200 / 2400 / 2700 / 3000 / 3500 / 4000     Over 4000 Available as special order (minimums may apply).

Main Highlights - 2.44w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 32.8 feet.

PRODUCT DATA SHEET

Flex HEX

FLEX2


STATIC WHITE

Standard CCT's 1800 / 2200 / 2400 / 2700 / 3000 / 3500 / 4000     Over 4000 Available as special order (minimums may apply).

Main Highlights - 2.7w and 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 32.8 feet.

PRODUCT DATA SHEET

                                      2.7w         4.3w

WARM DIM

Standard CCT's 1800/3000 and 2200/3000

Main Highlights - 3.05w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Cut increments 1.97" up to 16.4 feet.

PRODUCT DATA SHEET

TUNABLE WHITE

Standard CCT's 2700/6500 and 1800/4000  (Custom Blend Available - Check for mimimum order requirements).

Main Highlights - 4.27w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 16.4 feet.

PRODUCT DATA SHEET

RGB

Red (625nm) / Green (525nm) / Blue (470nm)

Main Highlights - 4.27w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Cut Increments 1.97" up to 16.4 feet.

PRODUCT DATA SHEET

FLEX2-HEX


STATIC WHITE

Standard CCT's 1800 / 2200 / 2400 / 2700 / 3000 / 3500 / 4000     Over 4000 Available as special order (minimums may apply).

Main Highlights - 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 16.4 feet. White and Black Finishes.

PRODUCT DATA SHEET

FLEX3

FLEX3 DIMS.jpg

STATIC WHITE

Standard CCT's 1800 / 2200 / 2400 / 2700 / 3000 / 3500 / 4000     Over 4000 Available as special order (minimums may apply).

Main Highlights - 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 16.4 feet.

PRODUCT DATA SHEET

WARM DIM

Standard CCT's 1800/3000 and 2200/3000

Main Highlights - 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 16.4 feet

PRODUCT DATA SHEET

TUNABLE WHITE

Standard CCT's 2700 & 6500 (Custom Blend Available - Check for minimum order requirements)

Main Highlights - 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Free Cut to any length up to 16.4 feet



PRODUCT DATA SHEET

RGBW

Red (620nm) / Green (518nm) / Blue (460nm), White Select Color 2700 / 3000 / 3500 / 4000 / 5000 / 6500

Main Highlights - 4.3w per foot, 24v DC, IP67 Rated, 120Deg Beam Spread, Cut increments 2.46" up to 16.4 feet

PRODUCT DATA SHEET

DRIVERS

T/PSU-UNV

driver new.jpg

                                           PRODUCT DATA SHEET

Universal Dimmable Driver for Static

White and Warm Dim Applications.​​

T/PSU-TW2

tw2 driver.jpg

                                             PRODUCT DATA SHEET

Dual Channel 0-10v Dimmable Driver for Tunable White Applications.

One channel for Intensity and One for CCT Tuning

T/PSU-DALI

tw2 driver.jpg

PRODUCT DATA SHEET

DALI addressable driver for

Static, Warm Dim and Tunable White Applications

LUT Option for Lutron Athena Nodes

T/PSU-DMX


PRODUCT DATA SHEET

DMX Driver (RDM Capable) for Static White, Warm Dim, Tunable White, RGBW and RGB+TW Applications.

T/PSU-ND


                                             PRODUCT DATA SHEET

Non Dim Driver (for Casambi applications) for Static White, Warm Dim, Tunable White and RGBW Applications.
